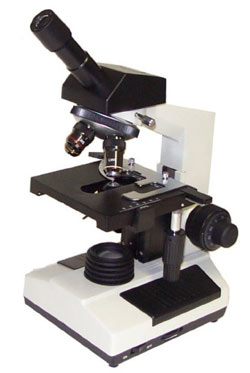

Revelation III-A Archromatic Monocular
Item# M-A03VRLW
The Revelation III professional-grade microscope is a best-seller into physician and veterinarian clinics, as well as universities and medical schools. Equipped for performance, its features include titanium-finished DIN achromatic, Semi-Plan or DIN Plan optics and a 30-year anti-fungal coating. It has 4X, 10X, 40X, 100XR (oil), Parfocal, parcentric, color-coded Objectives.
Head
- Inclined 30°, rotates 360°
- Dual diopter adjustment
- 10X/18 wide field eyepieces (10X/20HP available)
- Monocular
- Interpupillary distance range 55-75mm
Nosepiece
- Quadruple forward-facing nosepiece
- Multiple ball bearing mounted
Stage
- Mechanical stage (140mm x 140mm)
- Coaxial drive controls
- Range of traverse is 73mm x 43mm
- Stage locking lever
- Slow-close hydraulic slide finger
Focus
- Coarse adjustment: range of 30mm
- Fine adjustment: graduation of 2ėm
- Tension control knob
Illumination
- Moveable Abbe condenser, NA 1.25, rack & pinion
- Iris diaphragm
- Variable halogen light source (12V/20W bulb)
- 110V/220V switchable electronics
Dimensions and Weight
-
Height: 15 (380mm)
-
Length: 9 (230mm)
-
Width: 7 (178mm)
-
Weight: 14 lbs. (6.4kg)
