M1 PLUS Binocular
Item# 4HB-P1MLW
The M1 Plus microscope looks equally at home in a laboratory setting or an AP Biology classroom. The seidentopf binocular head, built-in mechanical stage, coaxial coarse and fine focus controls and reverse nosepiece are premium features normally found on much more expensive medical microscopes. All these features have been designed onto a large stable frame for durability and years of use.
Head
- Seidentopf binocular head
- Bearing mounted, rotates 360°
- 30° inclined head
- 10X/18 wide field eyepieces
- Locked-in eyepiece with pointer
Stage
- Built-in mechanical stage
- Stage size: 125mm x 130mm
Adjustment Control
- Coaxial coarse and fine focus
- Adjustable stage stop
Illumination
- NA 1.25 ABBE condenser on rack and pinion
- Iris diaphragm
- 12V 20W Variable halogen light source
- 110V / 220V auto-switching
- Mirror illuminator for field use
Objectives
- DIN achromatic
- 4X, 10X, 40XR, 100XR (oil)
- Parfocal and parcentric
- Color coded
- Four-position reverse nosepiece with internal click stops
Dimensions and Weight
-
Height: 15” (380mm)
-
Length: 9” (230mm)
-
Width: 6.63” (170mm)
-
Weight: 8.8 lbs. (3.99kg)

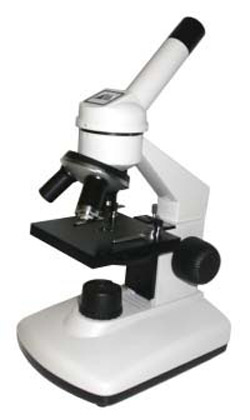

MOBI Jr. - Cordless LED, 3 objectives, Monocular(sold seperately) The MOBI, Jr. microscope is designed for elementary and junior high classroom use. The LED light source combines a rechargeable battery with a bright, white LED bulb for up to 40 hours of use on a single charge. Standard features include a disk diaphragm, three hole nosepiece, and a 10x widefield eyepiece. |

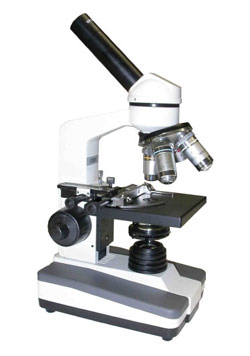

Student Advance - Flour, 4 obj, Abbe, Iris, Coaxial(sold seperately) For the teacher that wants more than just the basic microscope for his classroom this advanced model is an excellent choice. The 1.25 ABBE condenser allows the addition of a100x oil immersion objective. The iris diaphragm allows precision adjustments to the cool fluorescent light. |
|
Student Advance - Flour, 3 obj, Abbe, Iris, Coaxial (sold seperately) For the teacher that wants more than just the basic microscope for his classroom this advanced model is an excellent choice. The 1.25 ABBE condenser allows the addition of a100x oil immersion objective. The iris diaphragm allows precision adjustments to the cool fluorescent light. |

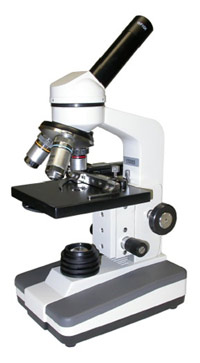

Student Scope - Flourescent, 3 objectives, disk(sold seperately) This student microscope has everything necessary for the middle school or high school classroom. This is a proven design with student proof features such as locked-in eyepieces, and a durable disk diaphragm. Clear DIN optics, coarse and fine focus, illumination and stage options make this scope a guaranteed winner. |

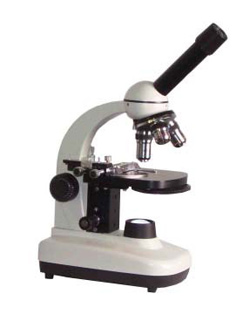

Observer IID Monocular(sold seperately) The Observer II-D monocular microscope is a cost effective design for school bids. It features durable construction, disk diaphragm, 360° rotating head, adjustable stage stop—and more! Teachers will love the student-proof features. |

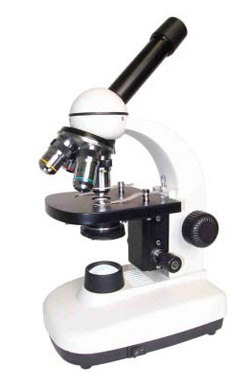

Observer IV Monocular(sold seperately) The Observer IV is designed for secondary education, so you know it''ll hold up well to lots of use! Standard features include a moveable 1.25" Abbe condenser, coarse and fine focus, 4-hole nosepiece for up to 1000X magnification, mechanical stage, fluorescent lighting, and an iris diaphragm. |
|
Observer III Monocular (sold seperately) The Observer III is designed for secondary education, so you know it''ll hold up well to lots of use! Standard features include a moveable 1.25" Abbe condenser, coarse and fine focus, 4-hole nosepiece for up to 1000X magnification, mechanical stage, fluorescent lighting, and an iris diaphragm. |
 |
 |
 |
Retail Price: $618.00
You Save: $73.00
 |
 |
 |
