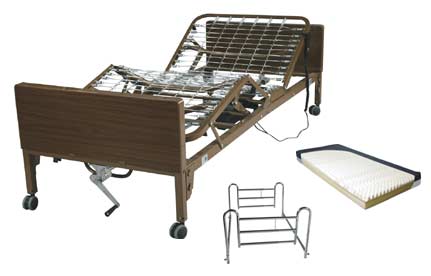

Ultra Light, Full Electric Hospital Bed

• Foot section weighs 50% less than conventional foot sections to make deliveries safe and easy.  Unique single motor and junction box assembly is completely self-contained to reduce noise.
• New and improved motor raises and lowers head and foot section twice as fast as our original bed motor.
• The motor assembly can be easily installed and removed with patient in bed in seconds without tools.
• The bed is easily assembled with only 5 components.
• In the event of a power failure, two 9 volt batteries, located in the motor, can lower the head and foot sections nine times.
• New and improved hand pendant has large, easy to use controls.
• Bed ships in two cartons.
• Channel frame construction provides superior strength and reduced weight.
• Bed frame, Head and foot boards interchangeable with Graham-Field Whisper Lite Bed.
• Zinc coated spring deck.
• Heavy duty vinyl clad bed ends are attractive in any decor and easy to maintain.
• Bed weighs less than 160 lbs.
• Weight Capacity 450 lbs.

Dimensions:

• Bed Height (Min) 15"
• Bed Height (Max) 24"
• Overall Length 88"
• Overall Width 36"
• Product Weight 149 lbs.

Foam Mattress

• The dimension for this mattress is 36" x 80" x 7".
• 6 month manufacturer defect warranty

Full Length Bed Rails, Chrome

• Chrime plated steel construction
• Less than 4" spacing between tubes
• Spring-loaded cross bars snap easily into place
• Adjustable length side rails
• Overall length is approximately 60"
• Height above bed frame approximately 14"
