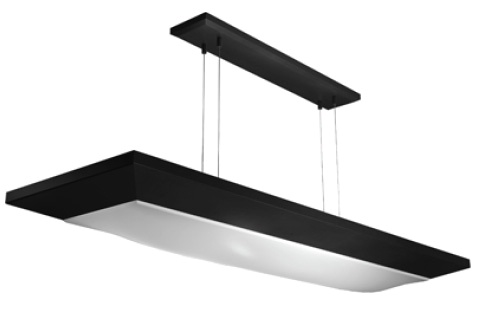

Aluminum 45in Hanging Cable Overhead Light
Aluminum 45in Hanging Cable Overhead Light
Unit: single  QTY    Add to Cart
Retail Price: $520.89
Your Price: $444.62
You Save: $76.27
Request Volume Pricing
Product in stock
email to friend add to favorites
loading

Hanging Overhead Light

Item# KC-VM234LEAFX

Geometric sloped sided pendant mount fixture is designed for indirect/ direct light output for a wide even light distribution and low profile floating effect.

LED lights are now available. Call for quote.
Volume pricing is available for purchases of 10 or more overbed lights.





Features:

  • It is available in two widths, 16in and 22in and two finishes
  • Satin aluminum or oil-rubbed bronze
  • Standard suspension includes (2) 12instems and canopy kit or suffix (CK) with a 45in cable and canopy kit,
  • Adjustable from 11-9/16” to 53-9/16” overall height
  • It can be used in various applications including corridors, kitchens and public spaces
  • This product offers a lift and shift gravity retention diffuser
  • Fixture mounts to standard junction box (not included)

Construction:

  • Channel is die-formed of 22-gauge steel
  • Standard mounting holes are provided in the canopy back mounting plate
  • The canopy is 5in wide x 27in long and 1in deep
  • Decorative frame assembly is .06” extruded aluminum
  • Power supply connections must be made inside a junction box (not included)

Finish:

  • Channel is finished in lighting grade white baked gloss enamel paint
  • Frame assembly consists of extruded satin aluminum or applied
    oil-rubbed bronze with clear lacquer topcoat

Diffuser:

  • Acrylic diffuser is .125in thick gloss white for the satin aluminum frame
    and linen pattern white acrylic for the oil-rubbed bronze frame

Electrical:

  • This unit can be ordered in the following options: with UL listed instant-start,
    electronic high power factor ballast
  • 120V 60Hz AC (E8 suffix)
  • 120-277 Universal 50/60Hz AC (MV suffix)

Lamping:

  • For use with 2/32 or 4/32 watt T8 linear fluorescent lamps (not included)

Certification:

  • All fixtures are cULus listed for damp locations

Dimensions:

  • Height: 6.0in
  • Width: 16.0in
  • Length:53.375in

Warranty:

  • 2 Year Limited Factory Warranty
