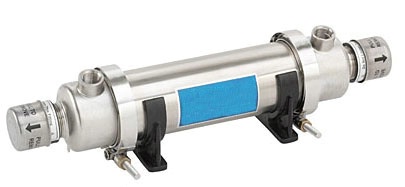

Mini Ultraviolet Water Purifier (1.5 gall/min)

Item# 5.1-OIBAUV

This ultraviolet water purification unit can purify 1.5 gallons per min or 90 gallons per hour. It utilizes germicidal ultraviolet lamps that produce short wave radiation lethal to bacteria, viruses and other microorganisms present in water.

Features:

  • Potable and high purity water applications
  • 316 Stainless Steel, electro polished and passivated inside and out
  • Dual heads may be removed and rotated for versatility during installation
  • Easy Off™ Retainer Cap for effortless lamp change
  • Fused quartz sleeve insure optimum lamp output at normal potable water temperature
  • Economical - hundreds of gallons are purified for each penny of operating cost
  • Safe - no danger of overdosing, no addition of chemicals
  • Chemical free - no chlorine taste or corrosion problems
  • Fast - water is ready for use as soon as it leaves the purifier – no further contact time required
  • Easy - simple installation and maintenance
  • Compact units require minimum space
  • Automatic - provides continuous disinfection without special attention or measurement
  • Efficient -  water is passed through a sediment filter and a carbon filter before the ultraviolet disinfection process

If you wish to see additional information, please click here to see the PDF for this product

Principle of Operation:

  • The purification unit has been carefully conceived to provide adequate germicidal dosage throughout the disinfection chamber
  • Filtered water enters the ultraviolet purifier and flows into the annular space between the quartz sleeve and the chamber wall
  • Suspended microorganisms are exposed to the ultraviolet rays emitted by the germicidal lamp
  • The LED indicator light, located on the ballast, provides visual indication of germicidal lamp operation
  • Water leaving the purifier is ready for use, no further contact time is required

Please see Accessories Tab for additional options

Specifications:

  • Flow rate: 1.5 gpm (gallons per min)
  • Voltage: 120v- 60Hz, 220v- 50/60Hz ,12v DC
  • Current (Amps): .24,.125, 1.27
  • Inlet/Outlet:  3/8in female NPT
  • Rated water pressure: maximum PSI 125
  • Shipping weight: 8 lbs.

 Unit Dimensions:

  • Length: 14-1/2in
  • Width: 3-11/16in
  • Height: 3-7/8in

Lamp Specification:

  • Lamp No: 05-1366-R
  • Nominal lamp length: 11-19/64in (287mm)
  • Power consumption: 14 watts
  • UV output: 3.7 watts
  • Effective Life: 10,000 hours

This product also available in:

Manufacturer warranty: 1 year

Lamp Status Alarm Lamp Status Alarm
(sold seperately)

This lamp status alarm produce a high-pitched pulsed tone when a water purifier has stopped working due to power failure or lamp failure.

 Safety Sensor Safety Sensor
(sold seperately)

This safety sensor provides constant visual indication of normal operation. In the event of ballast or lamp failure the safety sensor indicates an alarm condition.
Flow Control Valves Flow Control Valves
(sold seperately)

This flow control valves limits water flow to rated capacities.

 Elapsed Time Indicator Elapsed Time Indicator
(sold seperately)

This is a real-time, non-resettable display of accumulated operating hours.
Solenoid Valves Solenoid Valves
(sold seperately)

These solenoid valves operate in conjunction with safety sensor and prevents flow during detected malfunctions.
